Cloud feature. Dashboards are available in the AgentMark Dashboard.
AgentMark Dashboards give you a unified view of your application’s health — operational metrics (cost, latency, tokens, errors), evaluation scores (distributions, trends, cross-score comparison), and custom widgets — all on one page.
Developers set up observability in your application. See Development documentation for setup instructions.
Dashboard showing operational widgets and score analytics section

​
Operational metrics

The dashboard automatically tracks key metrics from your prompt executions:
CategoryMetrics
CostTotal cost, average cost per request, cost by model
LatencyAverage latency, P50/P95/P99 percentiles, latency trends
TokensInput tokens, output tokens, total tokens, tokens by model
VolumeRequest count, error count, error rate, unique users
ModelsRequest count per model, cost per model, top models ranking

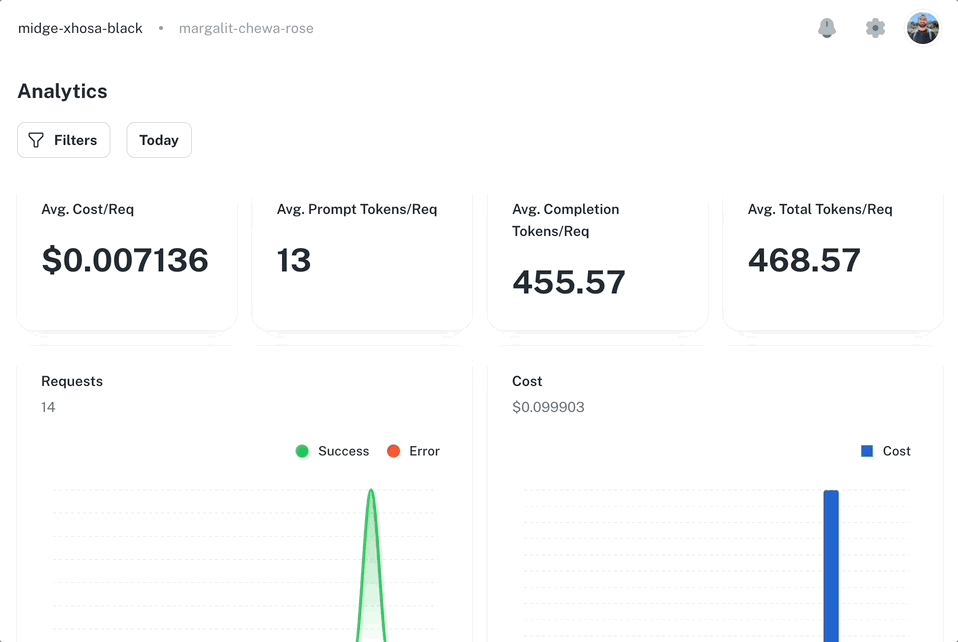

These appear as widgets on your dashboard — stat cards for at-a-glance numbers, line/bar/area charts for trends. Operational metrics dashboard

​
Score analytics

Score analytics are available as dashboard widgets — add them to any dashboard through the “Add Widget” dialog, or start from the Score Analytics template in the template gallery. Four score widget types are available:

​
Summary cards

Aggregated statistics for each score name:
  • Avg — Mean score value
  • Count — Total number of scores recorded
  • Min / Max — Range of observed values
Summary cards showing avg, count, min, max per score name

​
Score distribution

The histogram shows how score values are distributed. AgentMark auto-detects the score type:
  • Numeric scores — 10 equal-width bins between min and max
  • Categorical scores — Bar chart by category label
  • Boolean scores — Two bars for true/false
Score distribution histogram

​
Trend over time

Average score values over configurable intervals — Hourly, Daily, Weekly, or Monthly. Score trend chart

​
Score comparison

Compare two scores of the same type to see how they align across shared traces:
  • Categorical / Boolean — Confusion matrix (N×M heatmap)
  • Numeric — Scatter plot with paired values
Confusion matrix comparing two boolean scores
Both scores must be the same type. Mixing numeric with categorical will show an error. The scatter plot is capped at 10,000 data points for performance.

​
Score types

Score typeDetection ruleDistributionComparison
NumericFloat values, no labels10-bin histogramScatter plot
CategoricalString labels (not just true/false)Category bar chartN×M confusion matrix
BooleanLabels are only “true” and/or “false”Two-bar chart2×2 confusion matrix

​
Widgets

Dashboards are fully configurable with drag-and-drop widgets. Add any mix of operational and score widgets to create the view you need. Operational widgets (stat card, line, bar, or area chart):
  • Request count, error rate, cost, latency, tokens, unique users, model rankings
  • Derived metrics: cost/request, tokens/request, success rate, and more
Score widgets:
  • Score Summary — aggregated stats for all scores
  • Score Distribution — histogram or category chart for a selected score
  • Score Trend — trend line over time for a selected score
  • Score Comparison — confusion matrix or scatter plot comparing two scores
Custom dashboard with widgets

​
Available metrics

Volume: request_count, unique_users, total_tokens, avg_tokens Cost: total_cost, avg_cost Errors: error_count, error_rate Latency: avg_latency, p50_latency, p95_latency, p99_latency Rankings: top_models

​
Adding widgets

  1. Click + Add Widget in the dashboard header
  2. Choose a title and metric — operational metrics are under “Built-in” and “Derived”, score metrics are under “Scores”
  3. For score widgets, enter the score name(s) to track
  4. Choose a visualization type and optional group-by dimension
  5. The widget appears on the grid — drag to rearrange
Operational widgets support group-by dimensions (model, user, metadata key), time granularity (hour, day, auto), and filters (model, user ID, status).

​
Templates

Start from a pre-built template or create a blank dashboard. Dashboard template gallery
TemplateWhat it includes
OverviewRequest volume, cost, errors, latency — stat cards + time series
Cost AnalysisTotal cost, avg cost/request, cost over time, top models by cost, tokens
PerformanceP50/P95/P99 latency, error count, error rate
Score AnalyticsScore summary, distribution, trend, and comparison widgets

​
Dashboard settings

  • Default dashboard — mark any dashboard as default to load it when you visit the Dashboard page
  • Time range — global selector (24h, 7d, 30d, 90d) applies to all widgets and the score analytics section
  • Limits — up to 10 dashboards per app, maximum 20 widgets per dashboard

​
Metrics API

You can retrieve aggregated operational metrics programmatically using the public REST API. The GET /v1/metrics endpoint returns time-series data for trace volume, latency, cost, token usage, and error rates.
curl "https://api.agentmark.co/v1/metrics?granularity=day&startDate=2026-04-01T00:00:00Z" \
  -H "Authorization: Bearer am_live_abc123" \
  -H "X-Agentmark-App-Id: app_abc123"
Filter by model or span name, and choose hour, day, or week granularity. See the Metrics API reference for the full request and response schema.

​
Scores API

You can create and retrieve scores programmatically using the public REST API. This is useful for recording evaluation results, human feedback, or quality metrics from automated pipelines. Create a score for a span or trace:
curl -X POST "https://api.agentmark.co/v1/scores" \
  -H "Authorization: Bearer am_live_abc123" \
  -H "X-Agentmark-App-Id: app_abc123" \
  -H "Content-Type: application/json" \
  -d '{
    "resourceId": "span_abc123",
    "name": "quality",
    "score": 0.95,
    "label": "high_quality",
    "reason": "Response addresses all requirements."
  }'
List scores for a resource:
curl "https://api.agentmark.co/v1/scores?resourceId=span_abc123" \
  -H "Authorization: Bearer am_live_abc123" \
  -H "X-Agentmark-App-Id: app_abc123"
Delete a score:
curl -X DELETE "https://api.agentmark.co/v1/scores/score_abc123" \
  -H "Authorization: Bearer am_live_abc123" \
  -H "X-Agentmark-App-Id: app_abc123"
Scores created via the API appear in the score analytics widgets on your dashboards. See the Scoring API reference for the full request and response schema.

​
